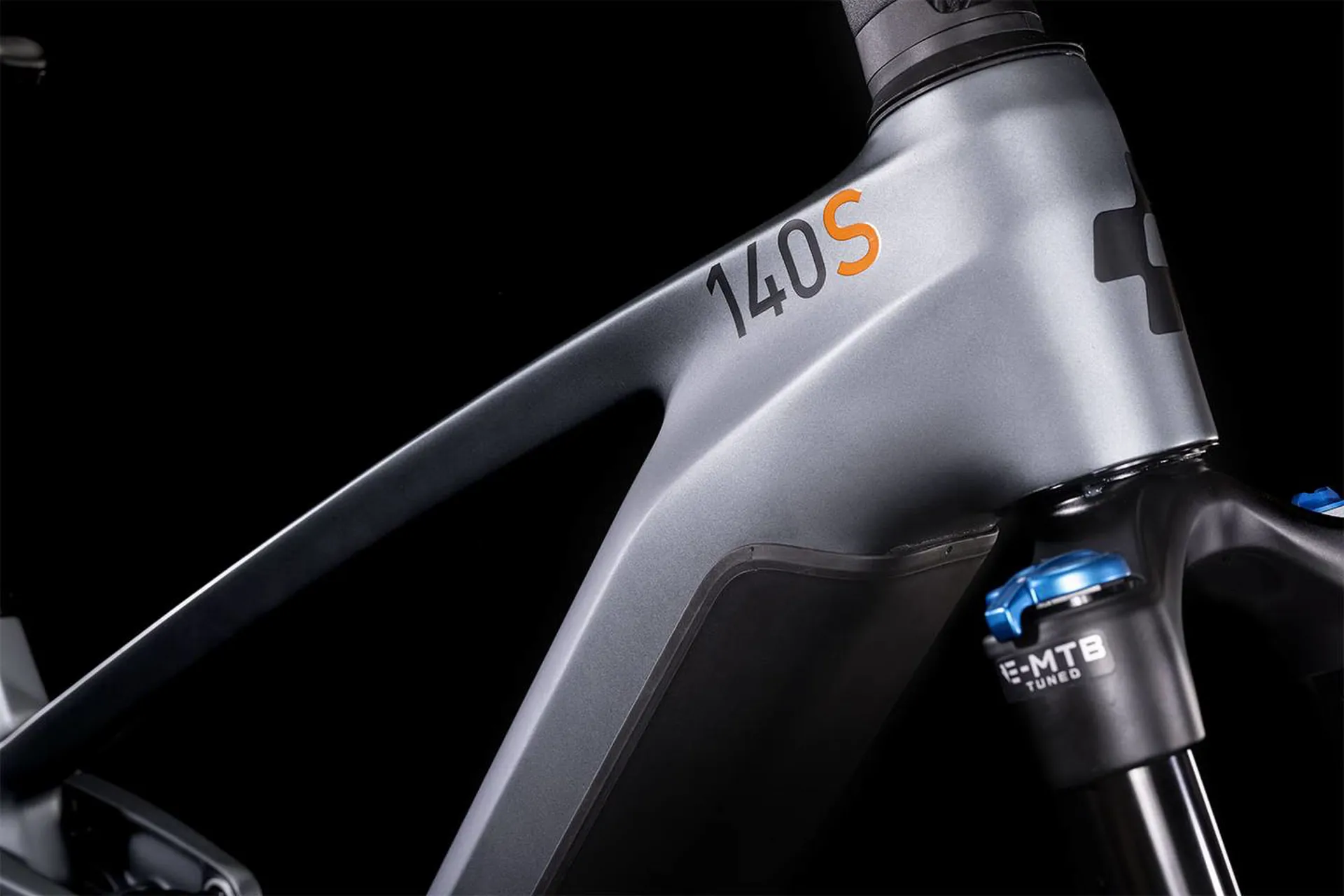

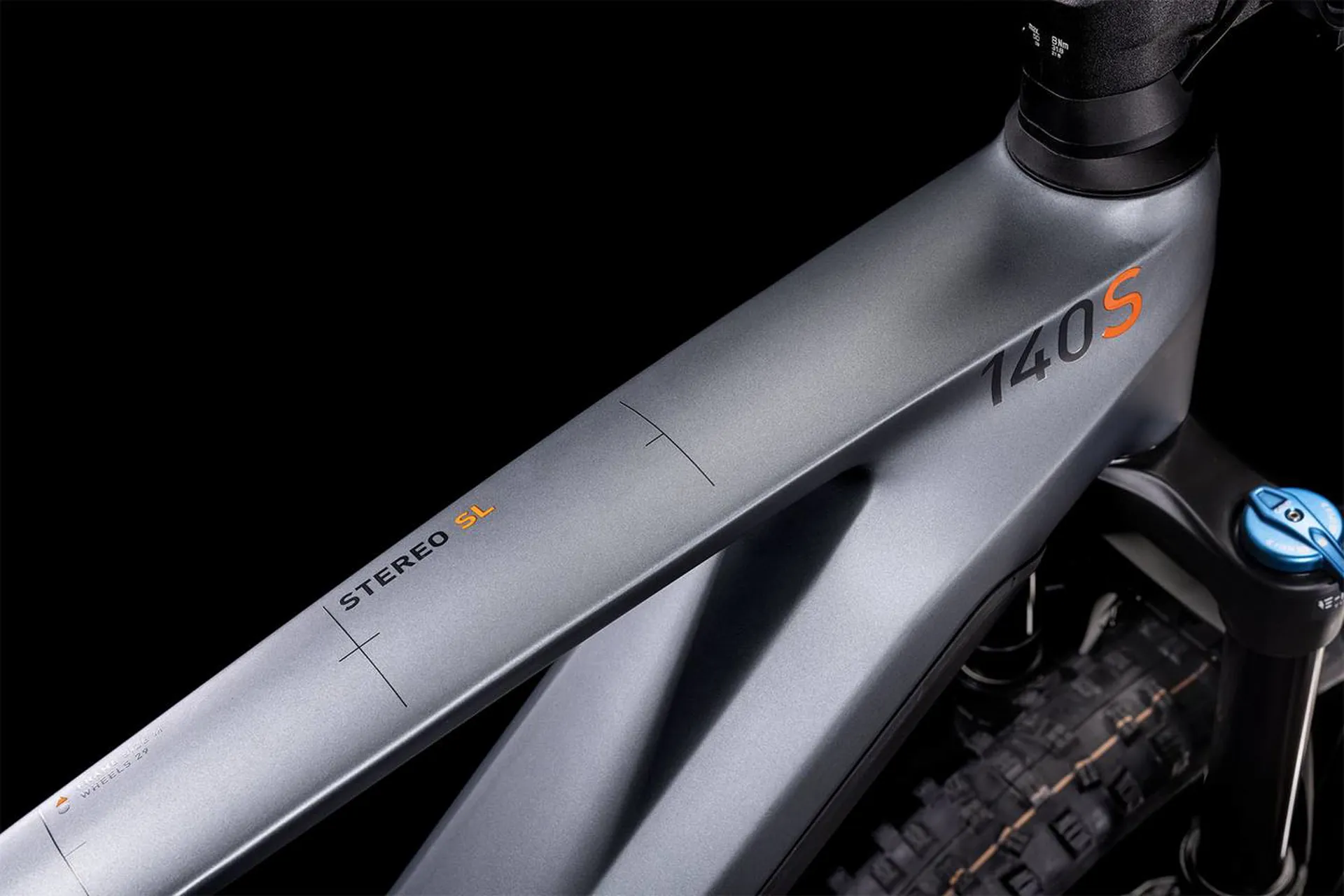

FRAME
C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
FORK
Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm

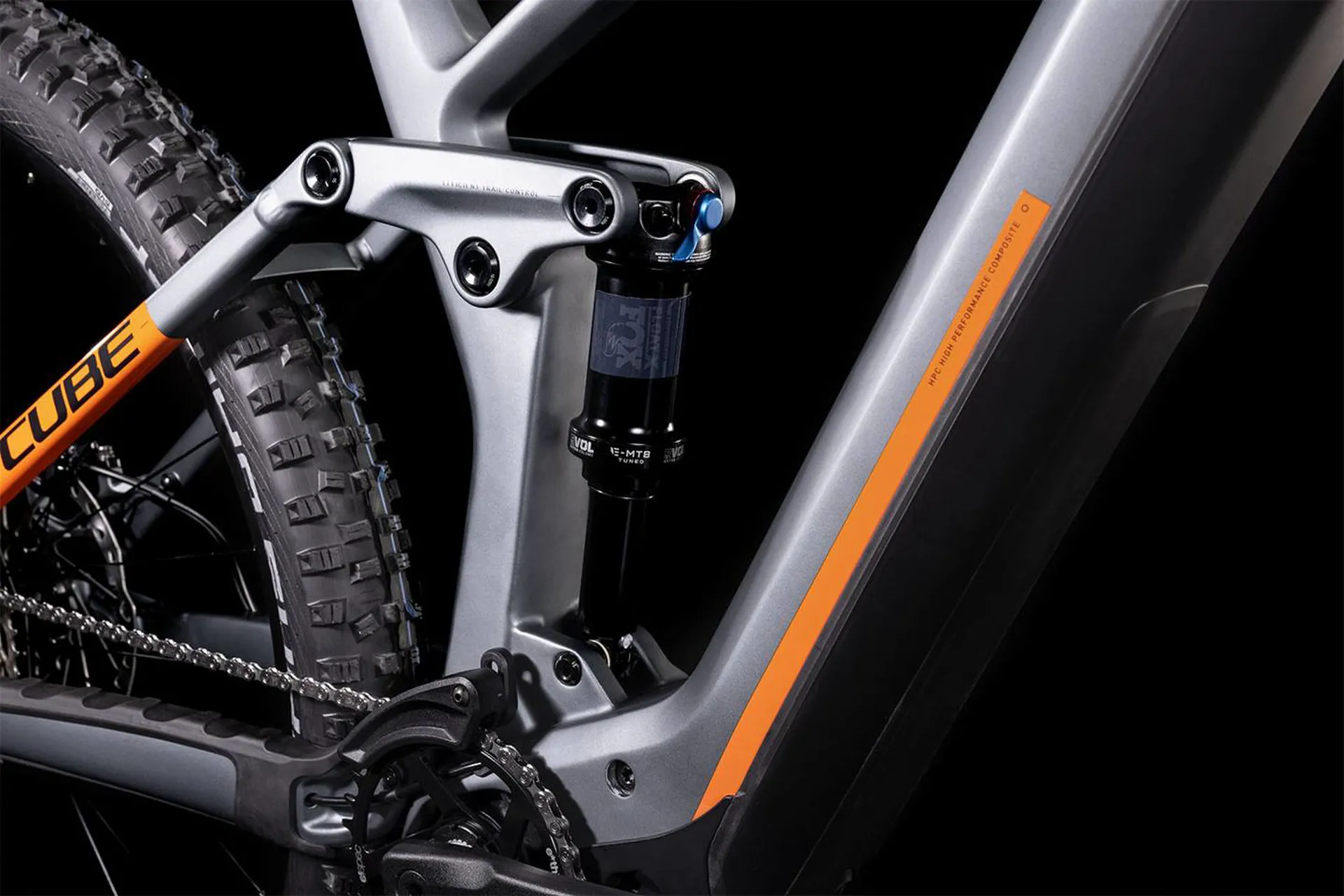

SHOCK
Fox Float DPS EVOL, 205x60mm, Open/Medium/Firm Mode, Trunnion Mount
SHOCK HARDWARE
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
DRIVE UNIT
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
BATTERY
Bosch PowerTube 750
DISPLAY
Bosch Kiox 300
CHARGER
Bosch 4A
BRAKE SYSTEM
Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
REAR DERAILLEUR
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
SHIFTERS
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
CRANKSET
ACID E-Crank, 165mm, 34T
CHAIN GUIDE
Reverse Flip-Guide E-Kettenführung, Direct Mount, GEN4
CASSETTE
Shimano Deore CS-M6100, 10-51T
CHAIN
Shimano CN-M6100
WHEELSET
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
FRONT TIRE
Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6
REAR TIRE
Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6
STEM
CUBE Performance Stem E-MTB, 31.8mm
HANDLEBAR
Newmen Evolution SL 318.25, 760mm
GRIPS
ACID Disrupt, Soft Compound
SEAT POST
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (M: 125mm, L,XL: 150mm)
SEATCLAMP
CUBE Screwlock Semi Integrated, 34.9mm
SADDLE
Natural Fit Venec
HEADSET
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom
Zero-Stack 1 1/2" (ZS 56mm)
WEIGHT
24,4 kg
ART. NO
536153
