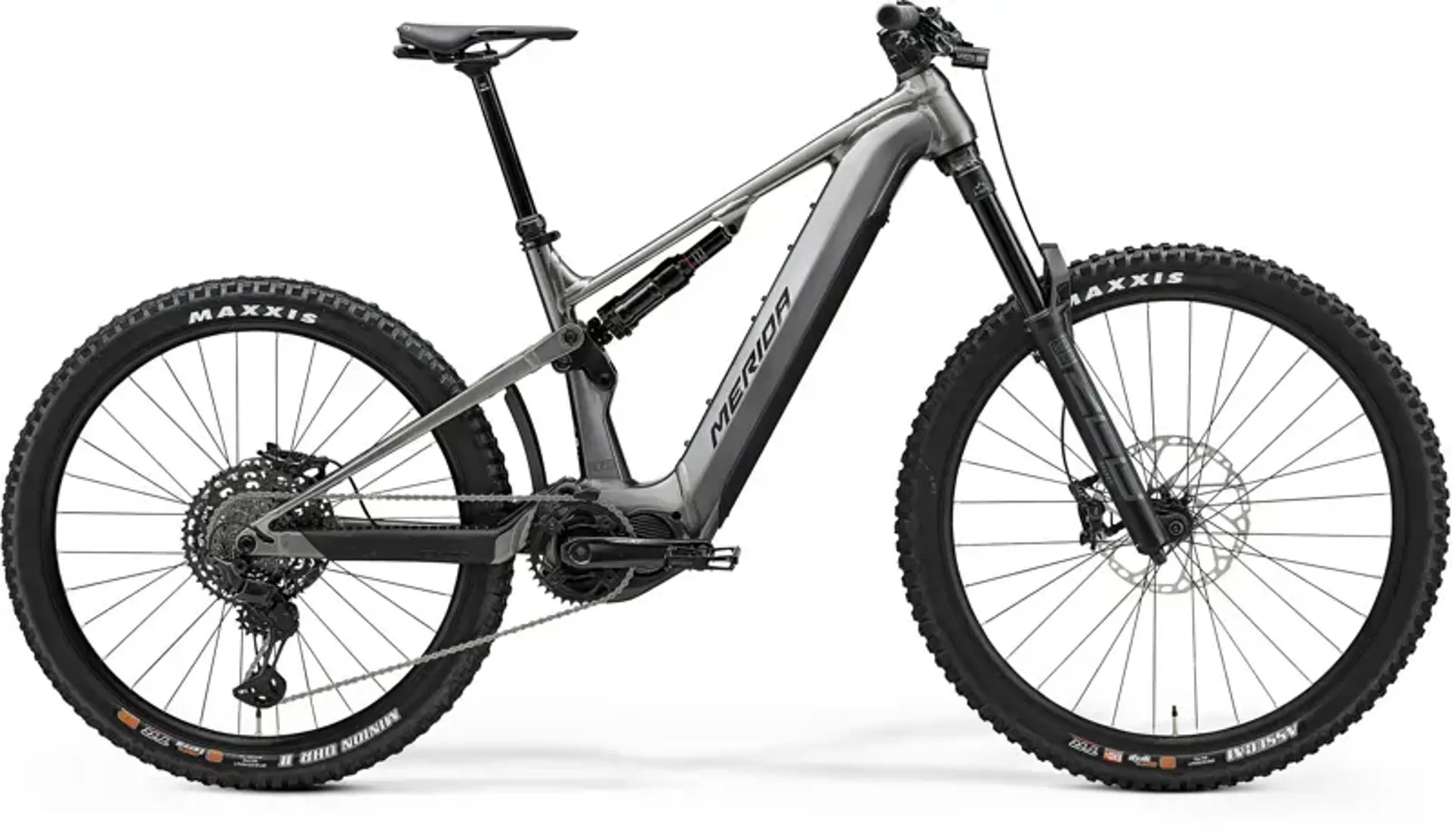

Merida eOne-Sixty 675 E-Mountain Bike In Grey Black 2025

Season:2025

Brand:Merida

Code:P-Q835

Experience the thrill of a vast range and ride fun without breaking the bank.

The eONE-SIXTY 675 features a durable aluminium frame and a user-removable 750 Wh battery, with an optional 360 Wh range extender. It combines award-winning handling and suspension with budget-friendly components to deliver maximum value. A robust Marzocchi Z1 170 mm fork and Bomber Air shock ensure trail stability, while the Shimano Deore Linkglide drivetrain is built for daily e-bike use.

With the latest eONE-SIXTY, every descent is an adventure waiting to happen. Its all-aluminium frame offers exceptional value and battery range, powered by a removable 750 Wh battery and optional 360 Wh range extender. The geometry, inspired by the award-winning ONE-SIXTY enduro range, provides handling that conquers tough climbs and exhilarating descents. The FAST kinematic suspension, with 174 mm of rear wheel travel, adapts to any trail challenge.

The bike's mixed wheel size, with a 29" front and 27.5" rear, allows for playful handling, and can be switched to a full 29er setup without altering the geometry, thanks to the flip chip design. Low standover heights across all sizes offer a choice between a longer frame for stability or a shorter one for agility. Some models include a 30-230 mm travel-adjustable dropper post.

Features:

  • Fourth generation LITE aluminium frame with 174 mm rear wheel travel.
  • Marzocchi Z1 fork with 170 mm travel and Bomber Air rear shock.
  • Durable Shimano Deore Linkglide drivetrain.
  • MERIDA tubeless-ready wheelset.
  • User-removable 750 Wh battery with optional 360 Wh range extender.
  • Powerful Shimano EP801 drive unit.
  • Mixed wheel size as standard with option to full 29".
  • Reach-based AGILOMETER sizing system.
  • Long-travel dropper posts on all sizes.
Technical Information
  • Model Year
    2025
  • Frame
    eONE-SIXTY LITE IV
  • Material
    Aluminium
  • Suspension Travel
    160mm
  • Max. Wheelsize
    29x2.6"
  • Axle Standard
    148x12mm
  • Intube
    750 Wh
  • Frame Size
    Mid, Long
  • Shock
    Marzocchi Bomber Air
  • Platform
    Fork Marzocchi Z1 eMTB Air
  • Fork
    Marzocchi Z1 eMTB Air
  • Suspension Travel
    170mm
  • Tapered
    Yes
  • Fork Offset
    44mm
  • Motor Unit
    CR-009, battery cover
  • Drive Unit
    Shimano EP801
  • Torque
    85Nm
  • Battery
    Trendpower Internal Battery TPS-C04-35SD Gen 2, 750Wh, removable
  • Battery Charger
    Trendpower EU Smart Charger, 4A
  • Display
    Shimano SC-EM800
  • Speed Sensor
    Shimano EW-SS301
  • Rim
    MERIDA EXPERT TR II
  • Front Hub Width
    110x15mm
  • Rear Hub Width
    148x12mm
  • Inner Width
    28mm
  • Material
    Aluminium
  • Tubeless Ready
    Yes (tubeless tape and valves not included)
  • Front Wheel Size
    29"
  • Rear Wheel Size
    27.5"
  • Hubs
    Shimano TC500-B / Shimano TC600-HM-B
  • Front Hub Width
    110x15mm
  • Spoke Holes
    32
  • Centerlock
    Yes
  • Rear Hub Width
    148x12mm
  • Spoke Holes
    32
  • Front Tyre
    Maxxis Assegai, 29x2.5", fold, TR EXO+ 3C MaxxGrip
  • Rear Tyre
    Maxxis Minion DHR II, 27.5x2.4", fold, 3C DD TR MaxxTerra
  • Hubs
    MERIDA EXPERT TR
  • Chainwheel
    FSA 1x Steel Chainring, 36 teeth
  • Crank
    Shimano FC-EM600, 165 mm for all sizes
  • Cassette
    Shimano LG400, 11-43 teeth, 10 speed
  • Chain
    Shimano LG500
  • Shifters
    Shimano SL-MT500-L / Shimano XT M5130 10
  • Rear Derailleur
    Shimano Deore RDM5130 LinkGlide 10
  • Brakes
    Shimano Deore M6120, 4 piston
  • Rotors
    Shimano RT64 / Shimano RTEM600, 220 mm, 203 mm
  • Headset
    Acros ICR MERIDA EXTERNAL neck w/ Blocklock
  • Stem
    MERIDA EXPERT eTR II, Aluminium, 35mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes
  • Handlebar
    MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB
  • Grip
    MERIDA EXPERT EC
  • Seat Post
    MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback
  • Seatpost Travel
    XS: 125mm, S: 150mm, M/L/XL: 200mm, XL: 230mm
  • Seat Clamp
    MERIDA EXPERT
  • Saddle
    MERIDA COMP SL, 28% recycled material, V-mount, incl. MERIDA minitool
  • Lights
    LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount / Lezyne LED Fempto USB rear STVZO
  • Pedal
    VP VP-532
