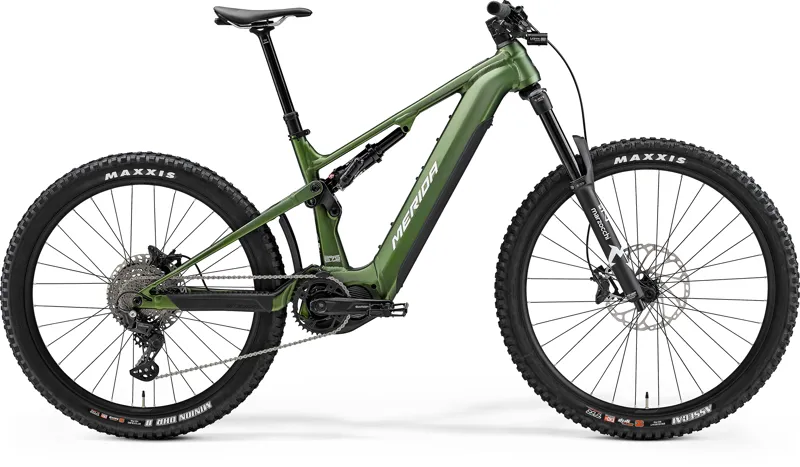

Merida eOne-Sixty 675 Full Suspension EMTB in Green White
Merida eOne-Sixty 675 Full Suspension EMTB in Green White
Merida

Merida eOne-Sixty 675 Full Suspension EMTB in Green White

£5,500.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.
30 Day Returns

We offer a 30 day returns policy.

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

A few types of goods are exempt from being returned. These include perishable goods such as food, nutrition bars and gift cards - bought in store or online.

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds may be granted at our discretion:

  • Any item not in its original condition, is damaged or missing parts for reasons not due to our error.
  • Any item that is returned more than 30 days after delivery.

Refunds

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds


If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at info@stirlingcycles.co.uk.

Exchanges

We only replace items if they are defective or damaged. If you no longer wish to keep your item as per our return policy above send us an email at info@stirlingcycles.co.uk and send your item to: Stirling Cycles, 18b Airthrey Road, FK9 5JR.

Gifts

If you received this item as a gift and you wish to return it, you will need to provide proof of purchase and you will receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.

We will only issue a refund to the gift giver as per the terms of our returns/ refunds policy above.

Shipping

To return your product, you should mail your product to: Stirling Cycles, 18b Airthrey Road, FK9 5JR

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are also non-refundable. If you receive a refund, the initial shipping costs will be deducted from your refund.

Depending on where you live, the time it takes for your exchanged product to reach you may vary.

Merida eOne-Sixty 675 Full Suspension EMTB in Green White

Season:2024

Brand:Merida

Code:P-P715




Highlights:
  • Fourth generation LITE aluminium frame with 174 mm rear wheel travel
  • Shimano EP801 85Nm motor with removable 750 Wh battery
  • Marzocchi Z1 fork with 170 mm travel and Bomber Air rear shock
  • Highly durable Shimano Deore Linkglide drivetrain
  • Merida tubeless-ready wheelset
  • Mixed wheel size as standard with option to full 29"

Meridas aluminium frame shares the same suspension platform as the carbon models. A Shimano Steps 85Nm EP801 motor is combined with a removable 750WH battery, Marzocchi suspension, Shimano Deore Linkglide drivetrain, Maxxis tyres and a tubeless ready mullet wheelset.

With the new eOne-Sixty, the next descent is always about to start.

Meridas aluminium frame offers great value and maximum battery range, thanks to a powerful Shimano EP801 drive unit paired with a removable 750 Wh battery. A 360 Wh range extender is available separately.
The only reason to stop will be because you have to. Meridas capable, updated geometry has been influenced by the success of the original eOne-Sixty and the award winning One-Sixty; its handling will help conquer the toughest of climbs and the steepest descents.

The proven FAST kinematic suspension will take care of anything the trail throws at it. While the low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks.

The flip chip design enables you to run with mixed size 29" front and 27.5" rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails.

Technical Information
SPECIFICATION
FRAME
Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6"
MOTOR
Shimano Steps EP801; 85Nm
BATTERY
Simplo Trend Power Internal Battery Gen 2; 750Wh
BATTERY CAPACITY
750Wh
EBIKE DISPLAY
Shimano SC-EM800
CHARGER
Trend Power Simplo EU Charger; 4A
POWER BUTTON
Shimano satellite system on/off; EWSW310
MODE SWITCH
Shimano SW-EM800-L
SHOCK
Marzocchi Bomber Air; platform
FORK
Marzocchi Z1 eMTB; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.6"
GEARS
10
SHIFTERS
Shimano XT M5130 and Shimano SL -MT500-IL dropper lever
REAR DERAILLEUR
Shimano XT RDM5130 LinkGlide 10 speed
BOTTOM BRACKET
Part of Shimano Steps motor
CHAIN
Shimano LG500
CHAINSET
FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with MRP 1x chainguide
CASSETTE
Shimano LG400; 11-43 teeth; 10 speed
BRAKE LEVER
Shimano Deore
FRONT BRAKE
Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor
REAR BRAKE
Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT-EM910 203mm rotor
GRIP
Merida Expert EC
HANDLEBAR
Merida Expert eTR; 780mm wide; 20mm rise
STEM
Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
HEAD SET
Acros ICR Merida external neck w/ Blocklock
PEDAL
VP Components - VPE-527
SADDLE
Merida Expert CC with V-mount
SEAT POST
Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm - S: 150mm - M/L/XL: 200mm seat post travel
WHEEL SIZE
29" / 27.5"
RIMS
Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
SPOKES
Black stainless
FRONT HUB
Shimano TC500-B; 110 x 15mm; 32 spokes; Centerlock
REAR HUB
Shimano TC600-HM-B; 148 x 12mm; 32 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key
FRONT TYRE
Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip
REAR TYRE
Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR
COLOUR
Green/White
SEASON
2024
FRONT LIGHT
Lezyne Power STVZO E115, reverse Merida Custom Mount
REAR LIGHT
Lezyne LED FEMTO USB REAR STVZO
OTHER
Trend Power On-bike charging cable
Sizing Information
SizeRider Height (cm)
S<173
M167 - 183
L177 - 190
XL>187
