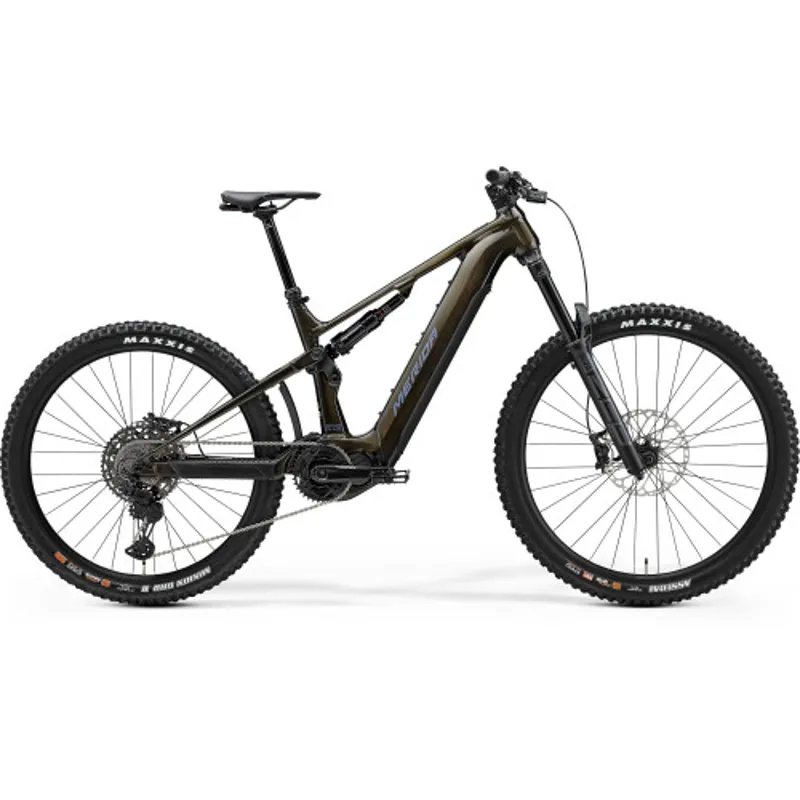

Merida eOne-Sixty 875 Full SUS EMTB in Gold Grey 2025

Season:2025

Brand:Merida

Code:P-Q830

Highlights:
  • Fourth generation LITE aluminium frame with 174 mm rear wheel travel
  • Shimano EP801 85Nm motor with removable 750 Wh battery
  • Rockshox Zeb fork with 170 mm travel and Super Deluxe rear shock
  • Hardwearing Shimano XT Linkglide drivetrain
  • Merida tubeless-ready wheelset
  • Mixed wheel size as standard with option to full 29"
Our LITE aluminium frame is equipped with a Shimano Steps 85Nm EP801 motor and a removable 750 Wh battery, RockShox Zeb fork with 170mm travel and Super Deluxe shock, Hard wearing Shimano LinkGlide componentry, Maxxis tyres, and a tubeless ready mullet wheelset

With the new eOne-Sixty, the next descent is always about to start. Our aluminium frame offersgreat value and maximum battery range, thanks to a powerful Shimano EP801 drive unit paired with a removable 750 Wh battery.
A 360 Wh range extender is available separately. The only reason to stop will be because you have to. Our capable, uodated geometry has been influenced by the success of the original eOne-Sixty and the award winning One-Sixty; its handling will help conquer the toughest of climbs and the steepest descents.

Our proven FAST kinematic suspension will take care of anything the trail throws at it. Our low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks.

Our flip chip design enables you to run with mixed size 29" front and 27.5" rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails. Thanks to our 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you.

Technical Information
Specification
Frame
Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6"
Motor
Shimano EP801; 85Nm
Battery
Trendpower Internal Battery Gen 2; 750Wh
Battery Capacity
750Wh
eBike Display
Shimano SC-EM800
Charger
Trendpower EU Smart Charger; 4A
Mode Switch
Shimano SW-EM800-L
Shock
Rock Shox Super Deluxe Select
Fork
Rock Shox ZEB Select; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.8"
Gears
11 Speed
Shifters
Shimano SL-MT500-IL dropper lever with Shimano XT M8130-11 shifter
Rear Derailleur
Shimano XT RDM8130 LinkGlide 11
Bottom Bracket
Part of Shimano Steps motor
Chain
Shimano LG500
Chainset
FSA 1x Steel chainring; 36 teeth with Shimano FC-E8150 crank; 165mm for all sizes; with Merida chain guide
Cassette
Shimano LG700; 10-50 teeth; 11 Speed
Brake Lever
Shimano XT
Front Brake
Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor
Rear Brake
Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT-EM600 203mm rotor
Grip
Merida Expert EC
Handlebar
Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise
Stem
Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes
Head Set
Acros ICR Merida external neck with Blocklock
Pedal
VP VPE-527
Saddle
Proxim Nembo Steel; V-mount adapter; including Merida minitool
Seat Post
Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel
Rims
Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
Spokes
Black stainless
Front Hub
Shimano XT; 110x15mm; 32 spoke; Centerlock
Rear Hub
Shimano XT; 148x12mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key
Front Tyre
Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR EXO+ 3C MaxxGrip
Rear Tyre
Maxxis DHR II; 27.5" x 2.4"; Kevlar bead, folding; 3C DD TR MaxxTerra
Colour
Gold/Grey
Season
2025
Front Light
Lezyne E-BIKE POWER STVZO E115,
Rear Light
Lezyne LED FEMTO USB REAR STVZO
Sizing Information
FRAME SIZEBODY HEIGHT
XS< 163 cm
S157 - 173 cm
M167 - 183 cm
L177 - 190 cm
XL> 187 cm
