The Orbea Rise is a high-performance light weight e-bike designed for all mountain shredding. This minimalist, sleek bike is fitted with a 60nm EP8 RS Shimano motor so you can explore further than you ever imagined possible!
The Orbea Rise is a high-performance light weight e-bike designed for all mountain shredding. This minimalist, sleek bike is fitted with a 60nm EP8 RS Shimano motor so you can explore further than you ever imagined possible!
Orbea

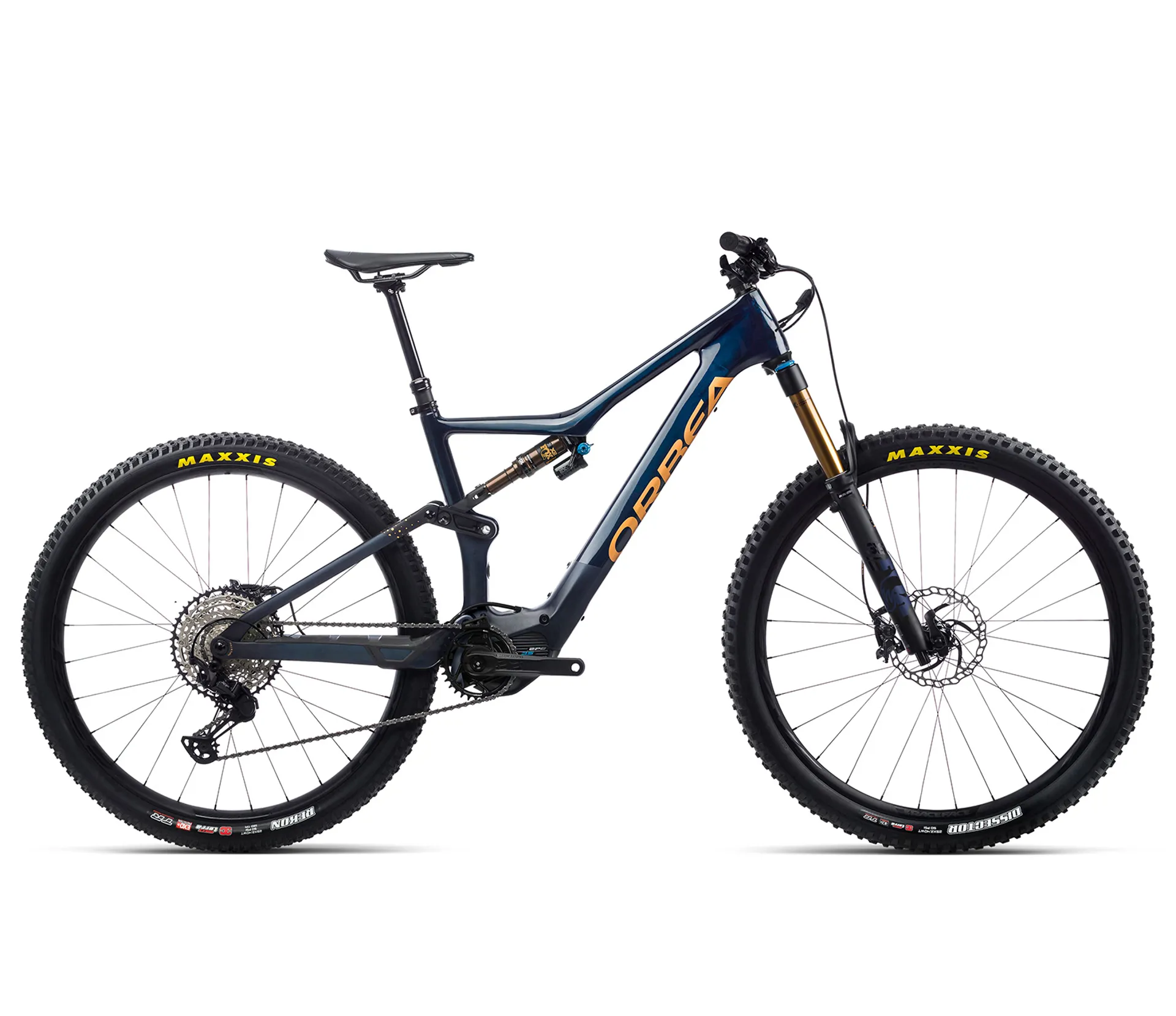

Orbea Rise M10 Electric Mountain Bike 2021- Size Large

£6,999.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.
30 Day Returns

We offer a 30 day returns policy.

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

A few types of goods are exempt from being returned. These include perishable goods such as food, nutrition bars and gift cards - bought in store or online.

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds may be granted at our discretion:

  • Any item not in its original condition, is damaged or missing parts for reasons not due to our error.
  • Any item that is returned more than 30 days after delivery.

Refunds

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds


If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at info@stirlingcycles.co.uk.

Exchanges

We only replace items if they are defective or damaged. If you no longer wish to keep your item as per our return policy above send us an email at info@stirlingcycles.co.uk and send your item to: Stirling Cycles, 18b Airthrey Road, FK9 5JR.

Gifts

If you received this item as a gift and you wish to return it, you will need to provide proof of purchase and you will receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.

We will only issue a refund to the gift giver as per the terms of our returns/ refunds policy above.

Shipping

To return your product, you should mail your product to: Stirling Cycles, 18b Airthrey Road, FK9 5JR

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are also non-refundable. If you receive a refund, the initial shipping costs will be deducted from your refund.

Depending on where you live, the time it takes for your exchanged product to reach you may vary.

Orbea Rise M10 Electric Mountain Bike 2021- Size Large

Season:2021

Brand:Orbea

Code:L36318YX

Weighting in at under 20kg, the Orbea Rise really is something special.

Orbea believe that power is only as useful as the manner in which it is applied thus the Rise's weight was optimised to maximise human and bike interaction. The Rise's EP8 RS power band feels alive, smooth and responsive, echoing your input and cadence, with custom electronics that are tuned to deliver peak power at cadences of 75-95 rpm -the range at which experienced riders produce the most power and efficiency.


To acheive this objective, Orbea has worked in conjunction with Shimano to build the RS (Rider Synergy) power concept, a “rider first”, highly responsive and super-efficient system that uses proprietary electronics and batteries that have been configured to work in perfect harmony with the Shimano EP8 motor - one of the quietest motors on the market that provides a totally unique feel.

The frame of the Rise has been designed to provide a confidence inspiring ride, and its suspension platform provides plenty of support with a high starting leverage rate that gives a plush and active feel combined with terrific traction. Its progressive curve controls the bike in full-travel situations - the inevitable big hits that come along with pointing a capable bike down a rocky trail.

The confidence inspiring nature of the Rise is backed up by a spec that is is intended for big rides, with a modular battery solution that provides up to 612wh (with optional add on range extender).

The Rise can be paired with the Shimano etube app providing aditional information and control form your smartphone, or used in conjunction with your Garmin by unlocking the Orbea RS Toolbox (just ask us how to do this, we'll provide all the info you need).

The Rise is ready when you are.

Technical Information
  • Frame - Orbea Rise OMR 2021 140mm travel 29" C-Boost 12x148
  • Shock - Fox DPX2 Factory 3-Position Adjust Evol Kashima custom tune 210x55mm
  • Fork - Fox 36 Float Factory 150 Grip2 QR15x110 Kashima
  • Crankset - e*thirteen e*spec Direct Mount 32T Boost
  • Crank - e*thirteen Plus Alu
  • Headset - Acros Alloy 1-1/8 - 1-1/2" Integrated
  • Handlebar - Race Face Next R 35 20mm Rise 780mm
  • Stem - Race Face Aeffect R 35mm interface
  • Shifters - Shimano XT M8100 I-Spec EV
  • Brakes - Shimano XT M8120 Hydraulic Disc
  • Rotors - 180mm Front /180mm Rear
  • Casette - Shimano CS-M7100 10-51t 12-Speed
  • Rear Derailleur - Shimano XT M8100 SGS Shadow Plus
  • Chain - Shimano M7100
  • Wheels - Race Face TURBINE-R30 TLR 15/110mm IS
  • Front Tyre - Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR
  • Rear Tyre - Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
  • Seatpost - OC2 Dropper 31.6mm
  • Seatpost Lever - Shimano SL-MT500 I-Spec EV
  • Saddle - Fizik Taiga S-alloy rail
  • Chainguide - Orbea Rise chainguide
  • Motor - Shimano EP8-RS
  • Battery - Orbea RS Internal 360Wh
  • Charger - Orbea RS Charger (36V-2A)
  • Remote - Shimano E7000 switch unit for assist
Sizing Information
HEIGHT ( CM )HEIGHT ( IN )SIZE
150-16559.1"-65.0"S
160-17563.0"-68.9"M
170-18566.9"-72.8"L
180-19870.9"-78.0"XL

*Estimated measurements


Geometry


SIZESMLXL
1 - SEAT TUBE (C-T)381419457508
2 - TOP TUBE (EFF)565592619649
3 - HEAD TUBE95105120140
4 - CHAINSTAY445
5 - BB HEIGHT336
6 - BB DROP*35/32
7 - WHEELBASE1180120512291255
8 - HEAD ANGLE*66º/65,5º
9 - SEAT ANGLE*77º/76,5º
10 - STANDOVER710736766776
11 - REACH425450474500
12 - STACK604613627646
13 - FORK LENGTH547
RAKE44

SIZECRANKSTEMHANDLEBARDROPPER SEATPOST
S16540780390/125
M16540780440/150
L17050780440/150
XL17050780480/170

*The handlebar size is centre-centre
